DIY Project # 12 - True Audio's WinSpeakerz Design Software and Introduction to Loudspeaker Design October, 1999

Ralph Calabria



True Audio, 387 Duncan Lane, Andersonville, Tennessee 37705; Phone/Fax: 865-494-3388; https://www.trueaudio.com; WinSpeakerz Speaker Design Software:  $129.00 US; 'Introduction to Loudspeaker Design':  $24.95 US;  166 pp

Introduction

Aren't computers great?  As we close the 20th century, it's hard to imagine going through a typical day without one.  Sending and receiving e-mail from all over the world, searching the Internet, sending FAX messages, not to mention the thousands of other software programs available (O.K. I'll mention a few) like word processing, scheduling and project organization, and the slew of 3D games on the market.  Suffice it to say, the computer is not just a glorified typewriter anymore!

Many things that were done using tedious, repetitive calculations (on a hand-held calculator) can now be glorified using Excel spreadsheets.  The same holds true for a variety of other tasks that took much longer before the computer emerged to its current status.  Take loudspeaker design, for example.  Hand calculations using the formulas originating from Thiele and Small took quite a bit of time to crank out and plot on a graph (also by hand, point, by point, by point) to get a response curve.  Now there are several CAD (Computer Aided Design) programs on the market that use these formulas to calculate AND plot a frequency response curve.  One such piece of software is True Audio's WinSpeakerz: The Speaker Design Toolbox, by John L. Murphy.  And what better way to augment loudspeaker design software than with a book that teaches you about the basics of loudspeaker design.  As coincidence would have it, Mr. Murphy has also written a book entitled 'Introduction to Loudspeaker Design', a tutorial of sorts, with an intention to supplement the information included in the WinSpeakerz user's manual.

WinSpeakerz: The Speaker Design Toolbox

Like all loudspeaker design software, WinSpeakerz uses formulas to calculate a response curve for a given driver based on the Thiele/Small (T/S) parameters of the driver.  So, in order for WinSpeakerz to do its thing, you'll need to have the T/S parameters handy to load into the program.  (There is also a very large driver database that is included with the software.)  The program's System Editor supplies the user with space to completely file your driver system info.  In addition to the T/S parameters, useful information such as the physical and mounting specifics, driver materials of construction, and picking an enclosure response for the system (including baffle diffraction loss and automotive applications) can be stored as part of the system 'package'.

O.K., so now you've put all the T/S parameters into the program; now what?  Well, the rest is pretty intuitive, and the user's manual guides you through all the options you have to choose from.  Let's take a look at some of the more useful ones.

WinSpeakerz can calculate box volumes for the following systems: 2nd and 3rd order closed box, 4th order vented box, and 4th, 5th, and 6th symmetric bandpass alignments.  Besides plotting frequency response, WinSpeakerz can also plot Phase, Group Delay Impedance, and Excursion responses.

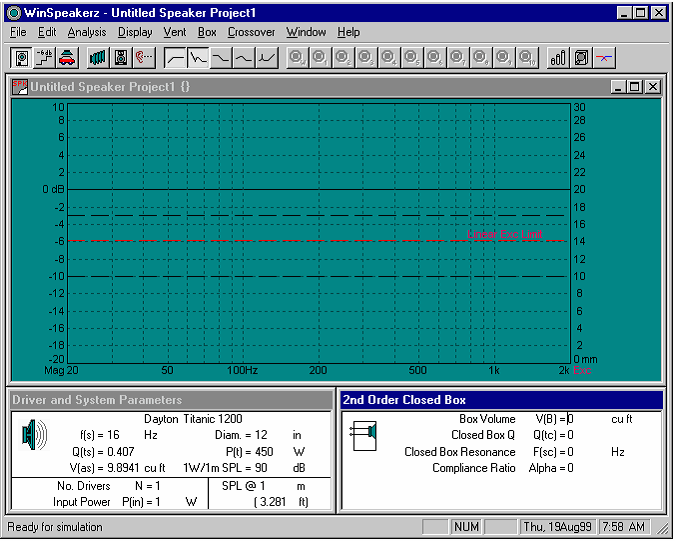

To best illustrate what this program can do, let's use the example of Dayton's Titanic 12' subwoofer driver.  This driver looks great on paper, with excellent power handling and a decent Xmax (maximum excursion of the voice coil front to back). Let's plug it into WinSpeakerz and see what happens!  Figure 1A is a snapshot of the screen once the driver is loaded into the program.  You'll notice that on the x-axis is the frequency (Hz) and on the y-axis is dB.   At the bottom left is displayed driver and system parameters, and on the bottom right is the alignment we've selected (in this case, a 2nd order closed box).

FIGURE 1A: WinSpeakerz default screen with Titanic driver loaded

To get various alignments for this driver, WinSpeakerz takes some of the guess work out of . . . well . . . guessing.  By keeping the box volume set at 0 and asking the program to calculate the frequency response, WinSpeakerz will supply you with 10 different alignments, while storing them in memory.  By selecting or de-selecting each plot using the store buttons on the top tool bar, one can view each alignment individually and determine which alignment is best.  Figure 1B shows you what to expect when asking WinSpeakerz for suggestions .

FIGURE 1B:  Array of responses suggested by WinSpeakerz

You'll notice that some of the suggested alignments can be eliminated because of a sharp peak in the frequency response, while others may be eliminated because bass extension is weak.  The main point here is, YOU can pick what alignment that works best for your design, fully aware of the tradeoffs involved before making the speaker enclosure.

OK, back to our subwoofer design.  After doing some weeding, we come up with a couple of alignments that look good in terms of frequency response vs. ripple peaks.  Figure 2 summarizes the two best alignments WinSpeakerz came up with.

FIGURE 2:  Best calculated responses from array



System #

1

2

System Q (Qts)

0.8

0.707

F3  (Hz)

28

28

F6  (Hz)

23

23

Box volume (cu.ft.)

3.46

4.90

Ripple (dB)

0.5 @ 70 Hz

0.0

By changing the system Q, the box volume changes dramatically at the expense of a small ripple at 70 Hz.  You, as the designer, choose the tradeoffs.  As it turns out, by adding acoustical stuffing to system #1, the small peak may be tamed to a great extent, if not eliminated completely.  However, man does not live by frequency response alone.  There are several other things to consider to ensure your design is successful.

Excursion Response

How loud will the design play, and how much power can the system handle before it crashes and burns?  These are good questions to ask yourself (particularly the latter).  Well, WinSpeakerz can help you answer them.  First, let's explain excursion.  Excursion is a term used to describe the movement of the driver cone back and forth.  The maximum allowable movement of the cone before distortion occurs is the Xmax.  This translates to a distance the voice coil can move within the magnet assembly without popping out.  This relationship is usually given in millimeters for the distance traveled in one direction, say 10mm.  If the Xmax is exceeded, you will usually hear distortion and occasionally a popping sound coming from the speaker.  Should this happen, turn down the volume, as this may cause damage to the speaker.

The excursion of the speaker system is related to the box design, and the power fed to the speaker.  In Figure 3, you'll see that the driver and system parameters window gives you the option to select multiple drivers and/or the input power used.  By plugging in a power number, then calculating the frequency response, excursion data is also generated.  The more power used, the higher the excursion response becomes.  For system #1, WinSpeakerz tells us that the maximum power handling is 170 watts, after which the excursion limit of the driver is exceeded.

FIGURE 3:  Excursion plot vs. power and dB output

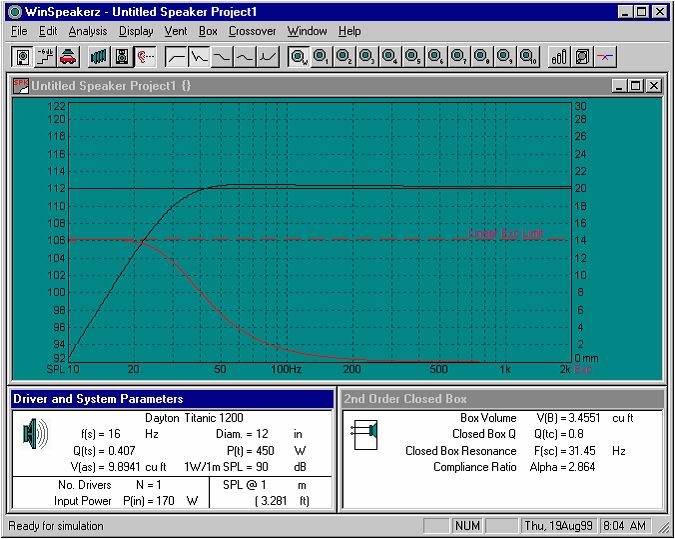

Along with the excursion data, comes system SPL, or how loud the system will play at a given power input.  WinSpeakerz can toggle between a dB plot and a dB SPL plot.  The dB SPL plot displays how loudly the system will play at a given frequency and power input.   Figure 3 shows that system #1 will play at 112.5 dB through 52 Hz, then drop off sharply as frequency is decreased (note the excursion plot is in red). This system has the capability of playing at 104.5 dB at 20 Hz.  Not too shabby!  As a side note, system #2 can only handle 110 watts before reaching the excursion limit of the driver, and will play at 110.5 dB at 52 Hz.

Group Delay Response

The time delay experienced by the audio signal between the speaker's electrical input terminals and the acoustic output is known as the group delay.  What does this mean?  Well, if the group delay is large enough, it will be audible.  The audible threshold for group delay is about 30 milliseconds, although lower is desirable.  WinSpeakerz calculates group delay to let you know if your design is within the desired range See Figure 4 for the Titanic system group delay (blue plot).  As you can see, our example has a maximum group delay at 23 Hz of 9.2 milliseconds.

Phase Response

The difference in phase between the input of the speaker and the speaker's output is known as the phase response of the system.  The phase response of a system should produce a smooth curve with not much in the way of large humps.  This would indicate that the group delay is large, approaching the audible limit.  Again for our example, the response is smooth, as would be expected by the system's low group delay (Figure 4, purple line).

Impedance Response

Calculating impedance for your system is important to ensure the impedance does not drop too low.  Knowing the minimum impedance of a system will guarantee you won't run into amplifier problems at the impedance minima.  For a closed box system, one sees a sharp increase in impedance at the resonance frequency of the box (in the example of the Titanic, about 75 ohms at 31.5 Hz).  The impedance minima is about 5 ohms for system #1 (see Figure 4; yellow line).  WinSpeakerz is also equipped with an Impedance Compensator calculation, which may be use in the crossover of a system to smooth out the impedance curve.

FIGURE 4:  Group delay, Phase, and Impedance Responses

Crossover Design

WinSpeakerz has the capability to calculate a variety of crossover networks including 1st, 2nd, and 3rd order Butterworth, 1st order Series, and 2nd and 4th order Linkwitz-Reilly.  As mentioned before, there is an impedance compensator as well as a tweeter attenuation calculation and a resonance compensator.  As in all loudspeaker designs, these crossover calculators are a very good starting point.  To fine tune a crossover to get the response just right may take some tweaking.  This tweaking usually requires equipment that actually measures the frequency response of the speaker system.

Various Other Goodies

Aside from the above mentioned functions, WinSpeakerz can model diffraction loss, as well as auto-cabin response for those who are looking to get into the hi-end car stereo business.  For vented (ported) systems, WinSpeakerz has a vent calculator that summarizes the size, length, and number of vents needed for a given system.  There is also a box calculator for rectangular, trapezoidal, and bandpass enclosures, which gives you the option of 'freezing' a dimension (length, width, or height), and WinSpeakerz calculates the remaining dimensions.  Also provided in the box calculator are displacement compensation for driver, bracing, and other displacements, and acoustical fill compensation which calculates V(b) increase due to filling.

I've touched on the major strong points the program can do.  There are many more that allow you to play with data once compiled, save systems for future work, and input your own drivers into the already 1080 driver database that comes with the software.

Summary

In short, WinSpeakerz is a great piece of speaker modeling software that can be used by both the novice and experienced designer.  The combination of its pull-down menus and user's manual make this package a breeze to use; very easy, very intuitive, very nice (for all you Macintosh users out there, True Audio also offers an all-new version of ).  There's a lot of speaker modeling software out there to choose from.  If you're in the market to design and build your own speakers, take a look at this one.  It's got all the features you need to get you started.  And unless you've got enough dough to plunk down on state of the art LEAP and LMS design system software, this package is a bargain at $129 US.

- Ralph Calabria -
